Part Number |
Pins |
Pins Engaged |
Open Belt P/N |
Description |
Picture |
Belt Fix Kit P/N |
3001971 |
22 |
8 |
3004607 |

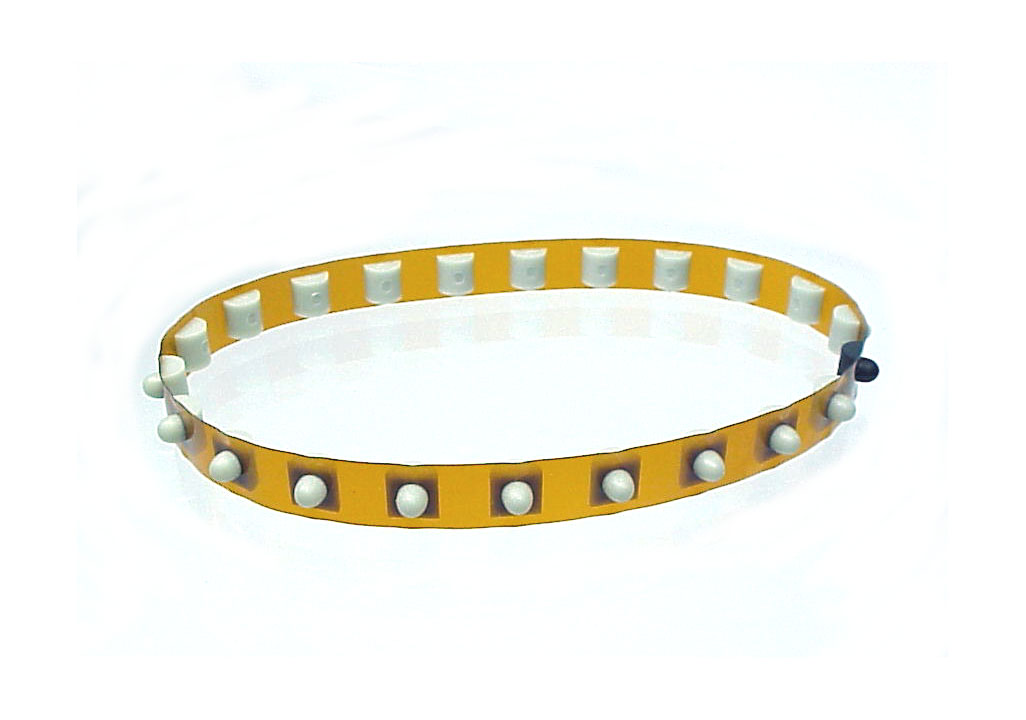

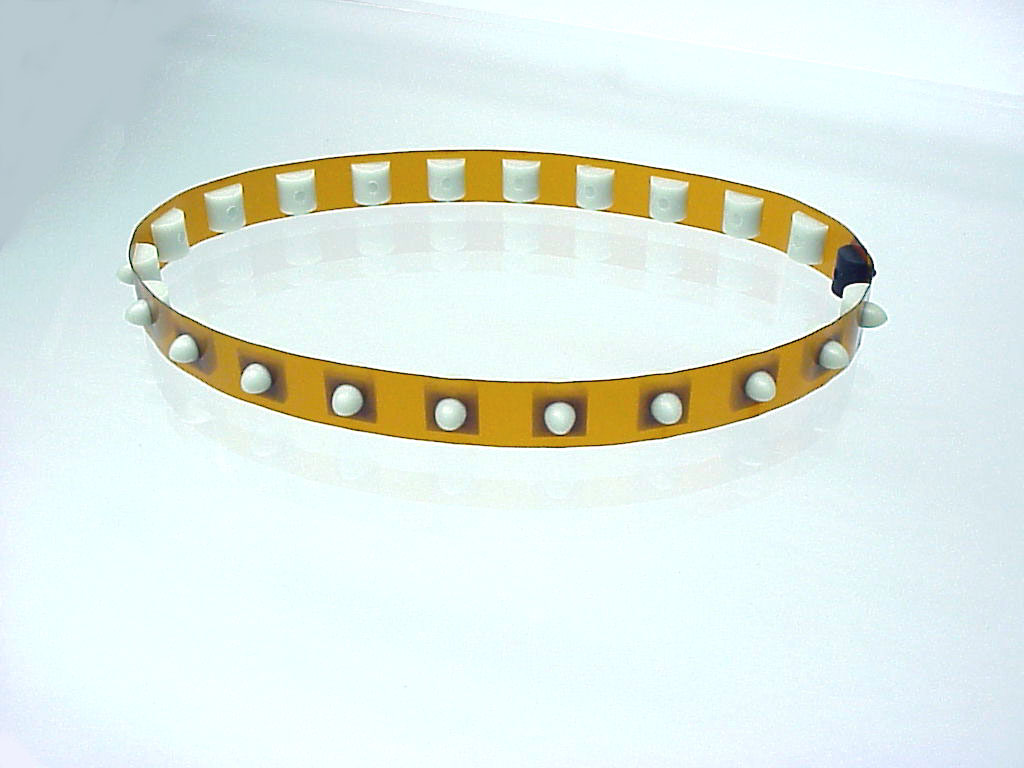

880.141 WHT BLACK/BLACK LINK |
 |
300448-8 |
3005481 |
22 |
8 |
30046014 |
880.148 BULLET BELT WHITE/BLACK LINK |
 |
300448-19 |
3006971 |
22 |
8 |
30046019 |

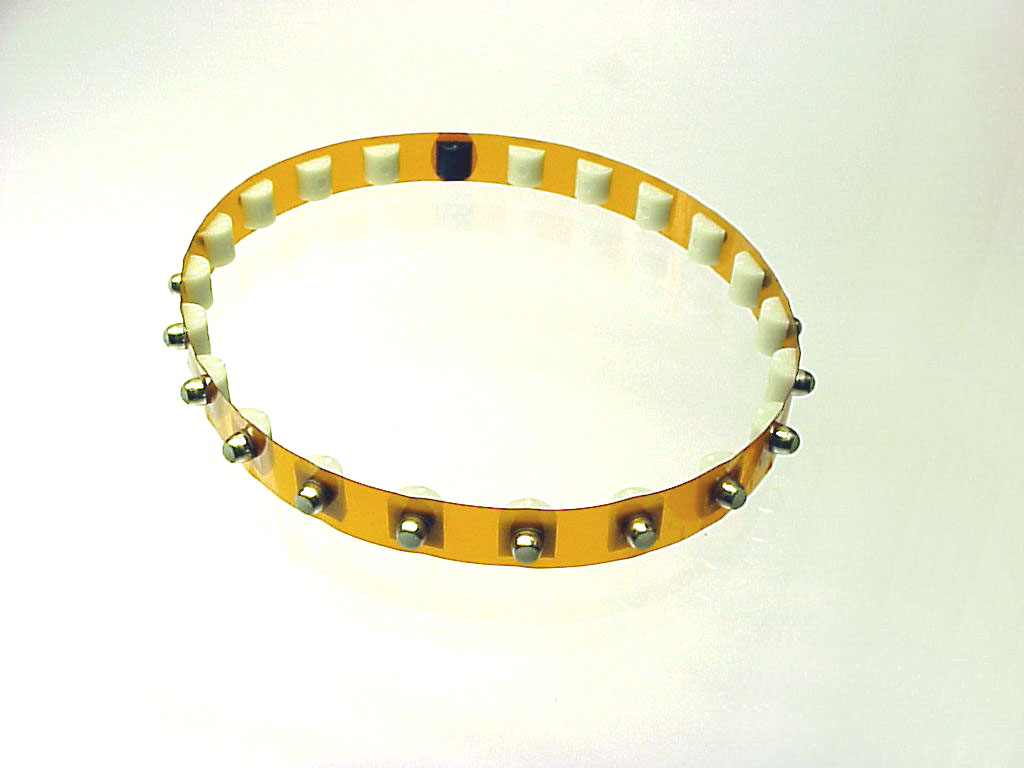

880 STEEL EYELET PIN BELT |
 |
300448-29 |
1060074 |
15 |
6 |
30046010 |

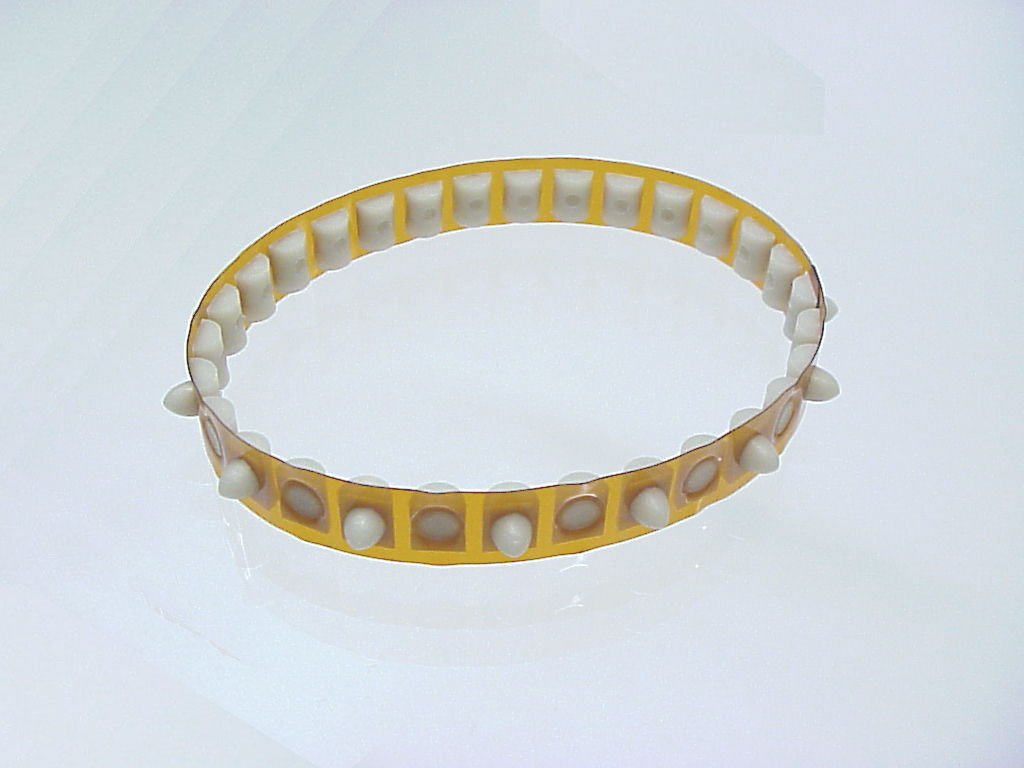

1060.141 WHITE NYLON BELT BLACK LINK |
 |
300448-12 |
3001981 |
15 |
6 |
3004608 |

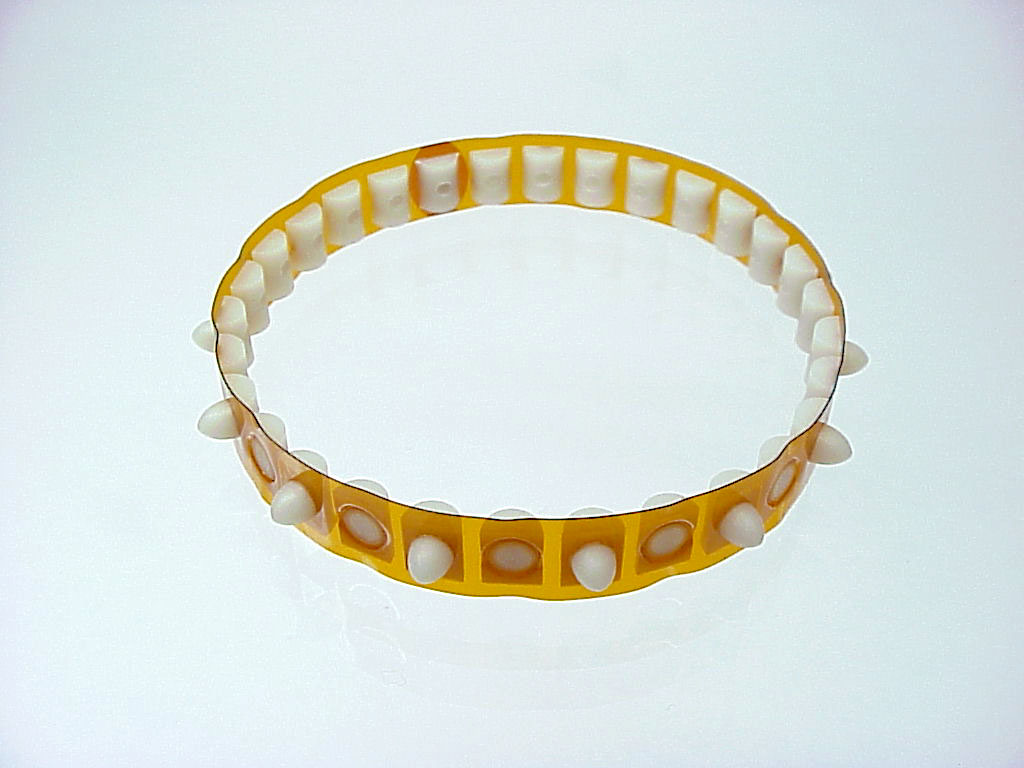

1060.151 WHITE NYLON BELT WHITE LINK |
 |
300448-9 |
3001395 |
15 |
6 |
3004604 |
1060.151 WHITE SKIP TOOTH BELT |
 |
300448-4 |
1060070 |
15 |
6 |
3004603 |

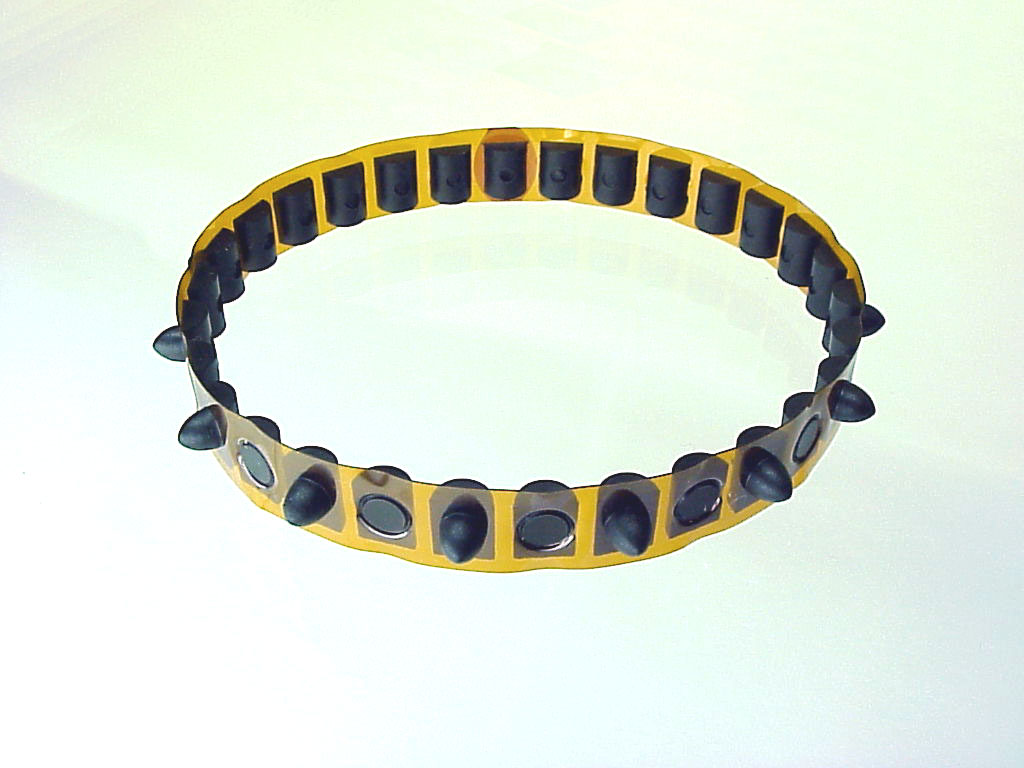

1060.141 BLACK NYLON BELT |
 |
300448-3 |
3006381 |
15 |
6 |
30046024 |

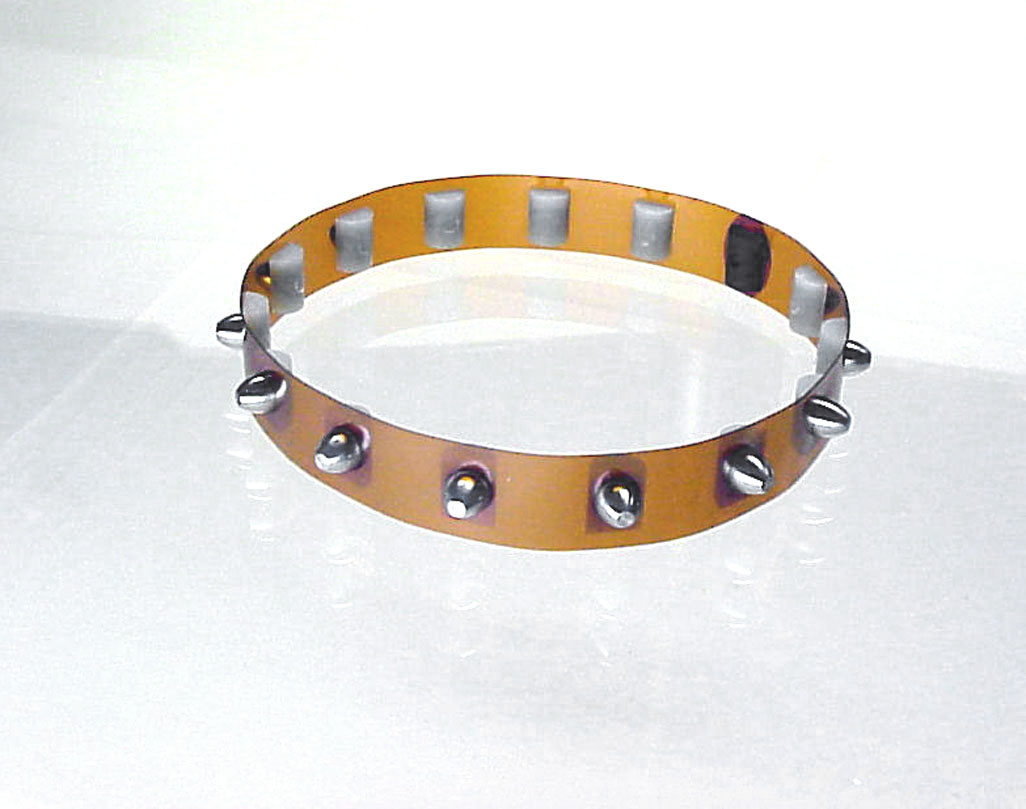

1060 IBM STEEL PIN BELT .151 |
 |
300448-41 |
1060078 |
15 |
6 |
30046010 |

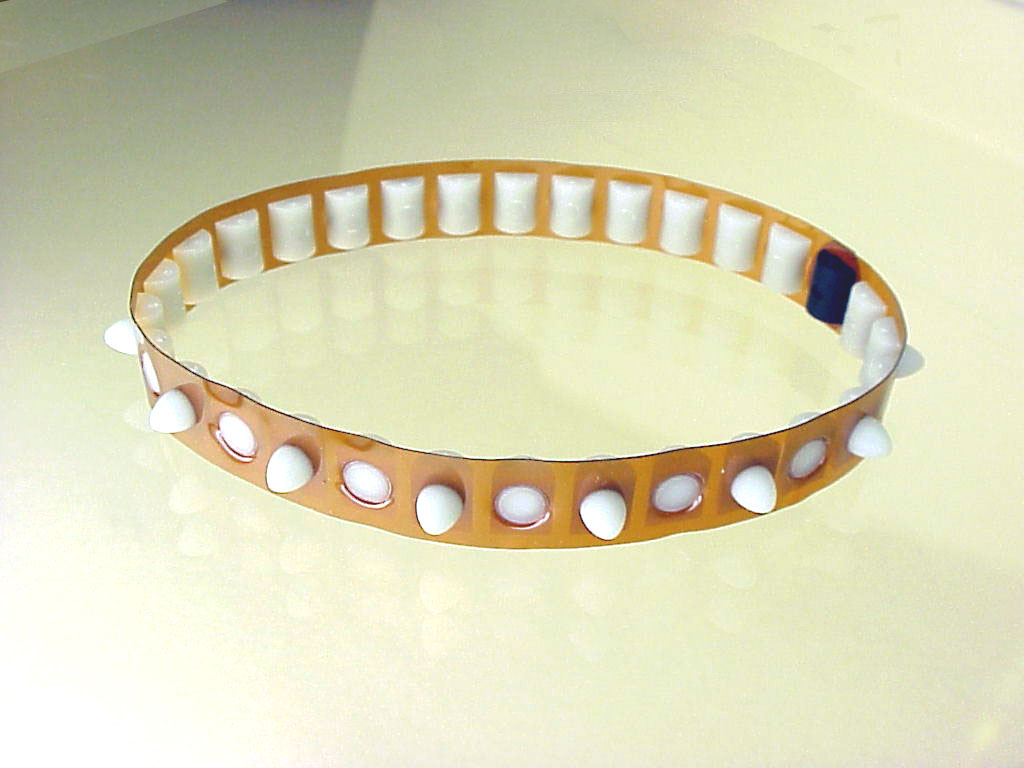

1060 WHITE NYLON BLACK M/L BONDED |
 |
300448-12 |
3004831 |
15 |
6 |
30046016 |
56X.148 WHITE PIN BELT |
 |
300448-23 |
3006781 |
15 |
6 |
30046021 |

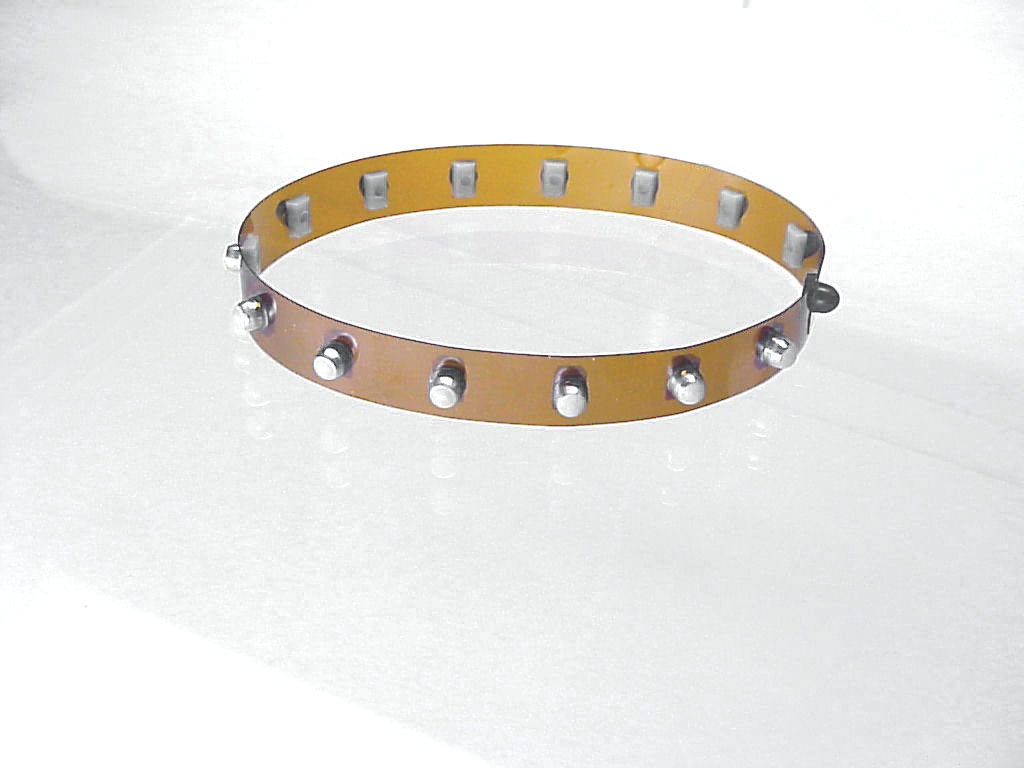

56X STEEL CAP PIN BELT |
 |
300448-33 |
3007531 |
15 |
6 |
30046022 |

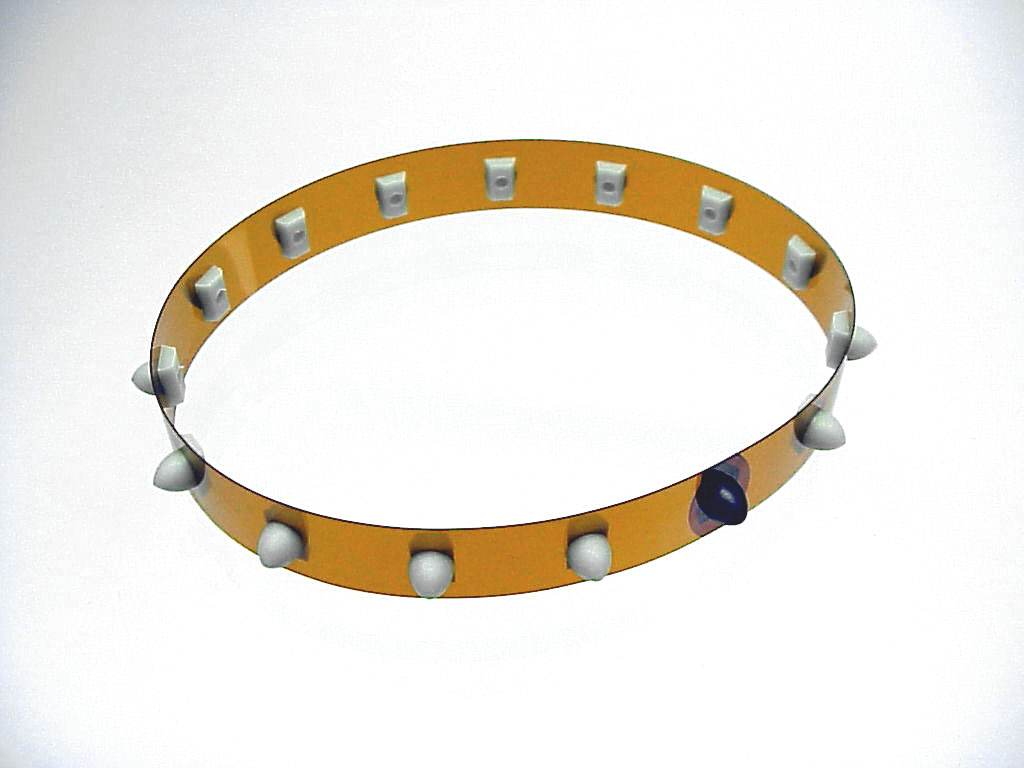

56X.141 INVOLUTE WHITE BELT BLACK LINK |
 |
300448-35 |
1040070 |
12 |
4 |
3004602 |

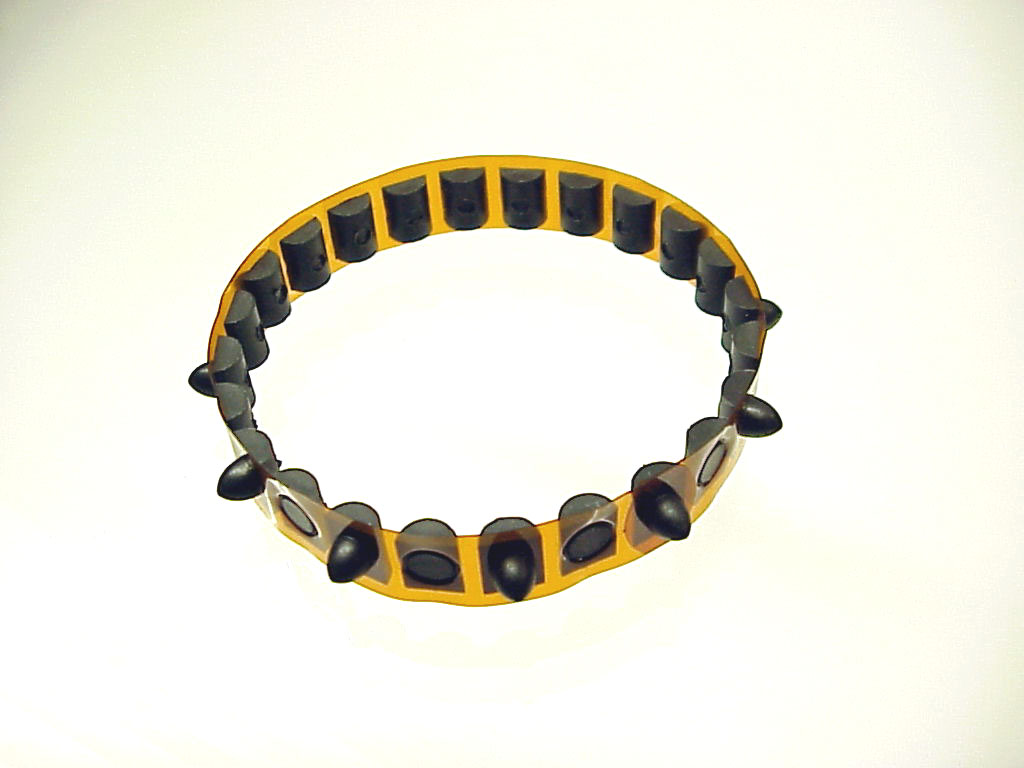

1040.141 BLACK PIN BELT |
 |
300448-2 |
3002721 |
12 |
4 |
3004602 |

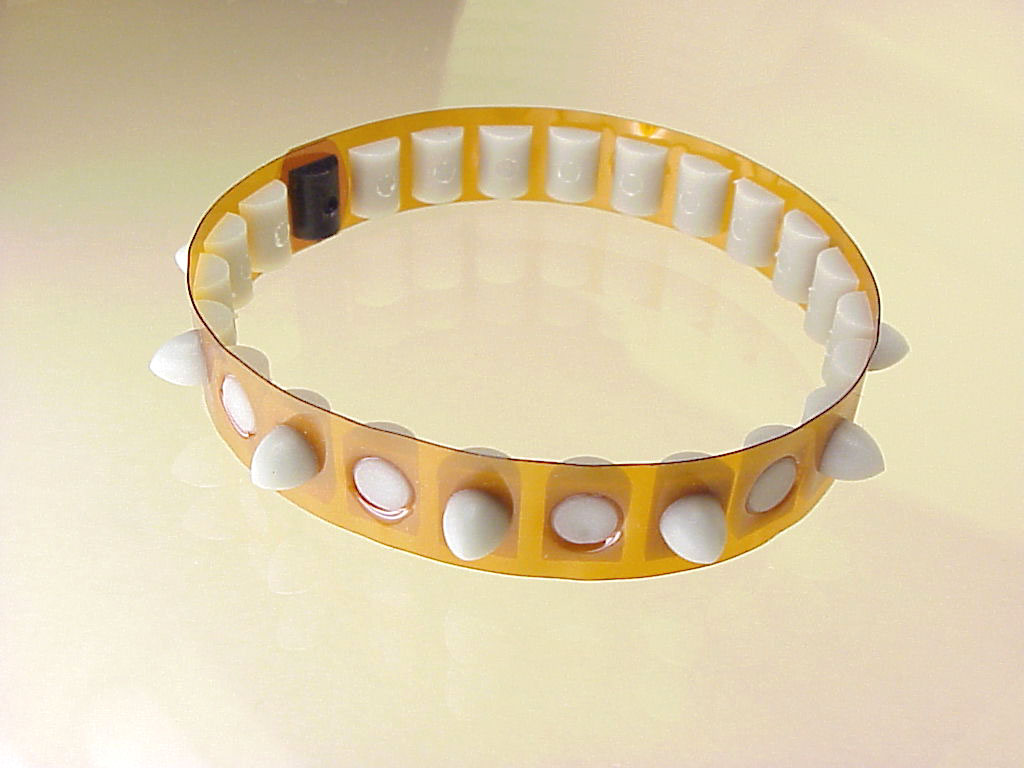

1040.151 WHT W BLK M/L |
 |
300448-13 |
3005600 |
12 |
4 |
30046017 |

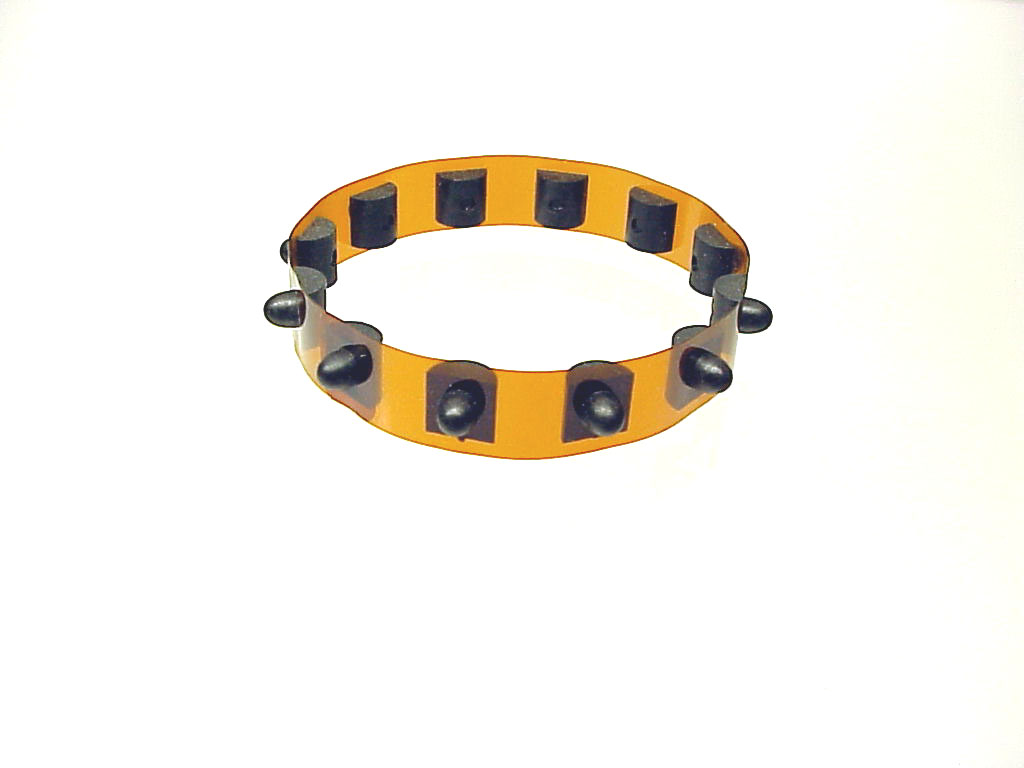

540 .141 BLACK BULLET PIN BELT |
 |
300448-24 |
5400070 |
12 |
4 |
3004601 |

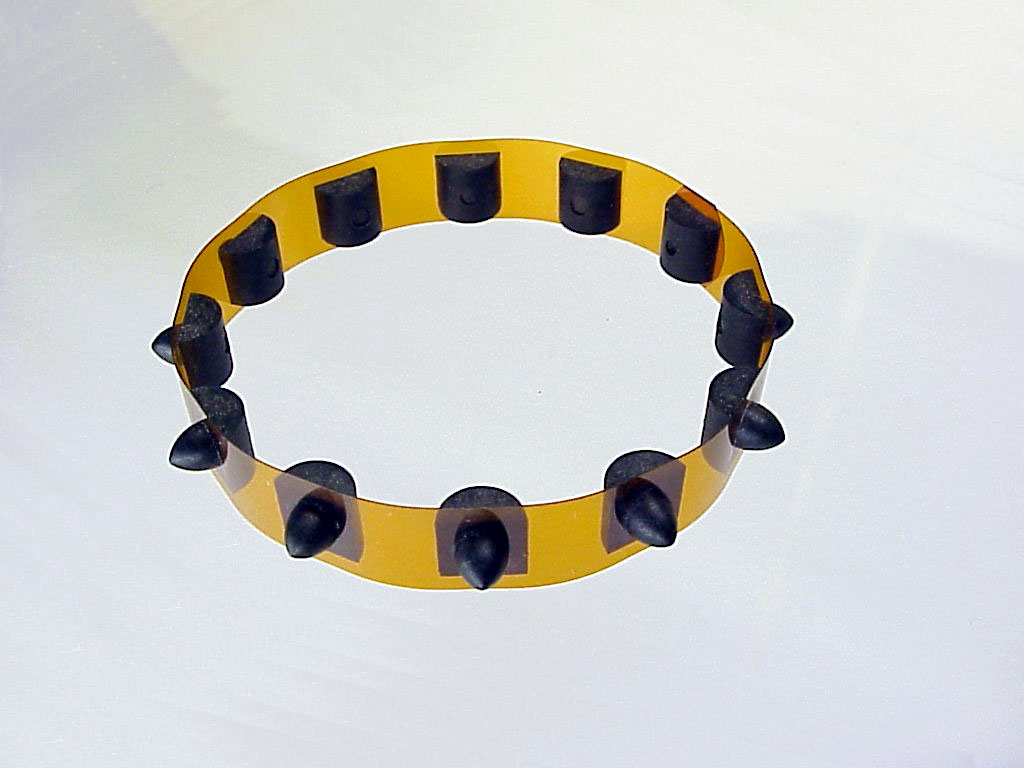

540.141 BLACK PIN BELT |
 |
300448-1 |
3009491 |
11 |
3 |
30046020 |
54X.148 WHITE BULLET PIN BELT BLACK LINK |
 |
300448-32 |
6840625 |
22 |
8 |
30046018 |

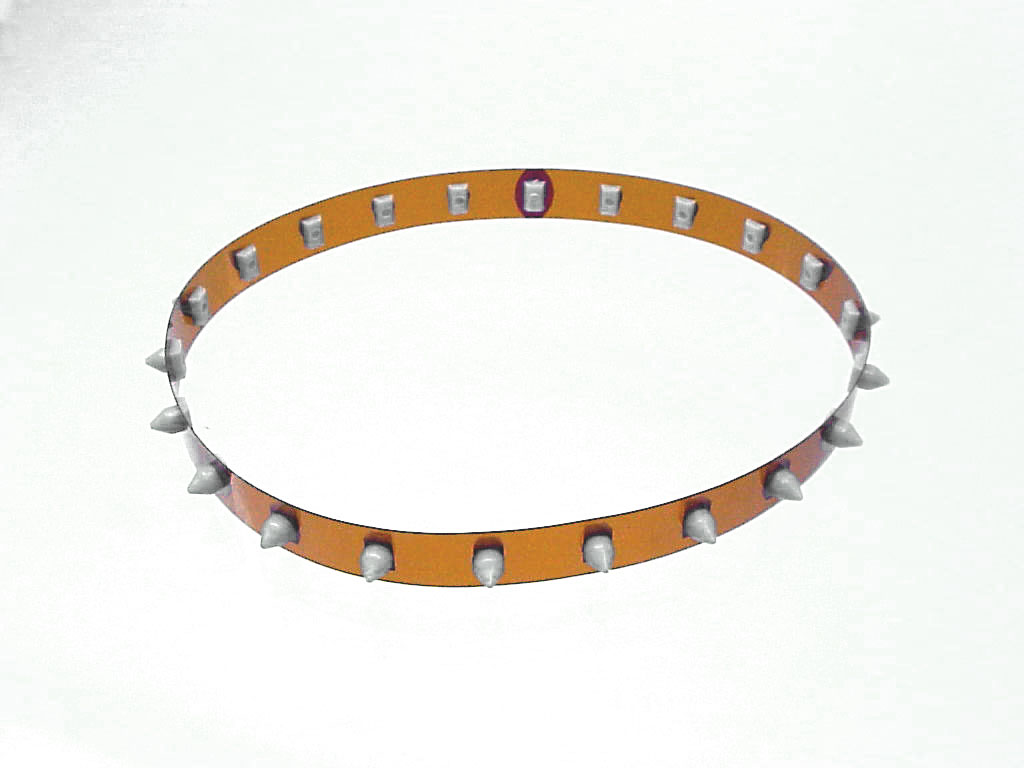

IBM BOCA BELT .141 WHITE PIN |
 |
300448-45 |
*3010401 |
15 |
6 |
30046022 |

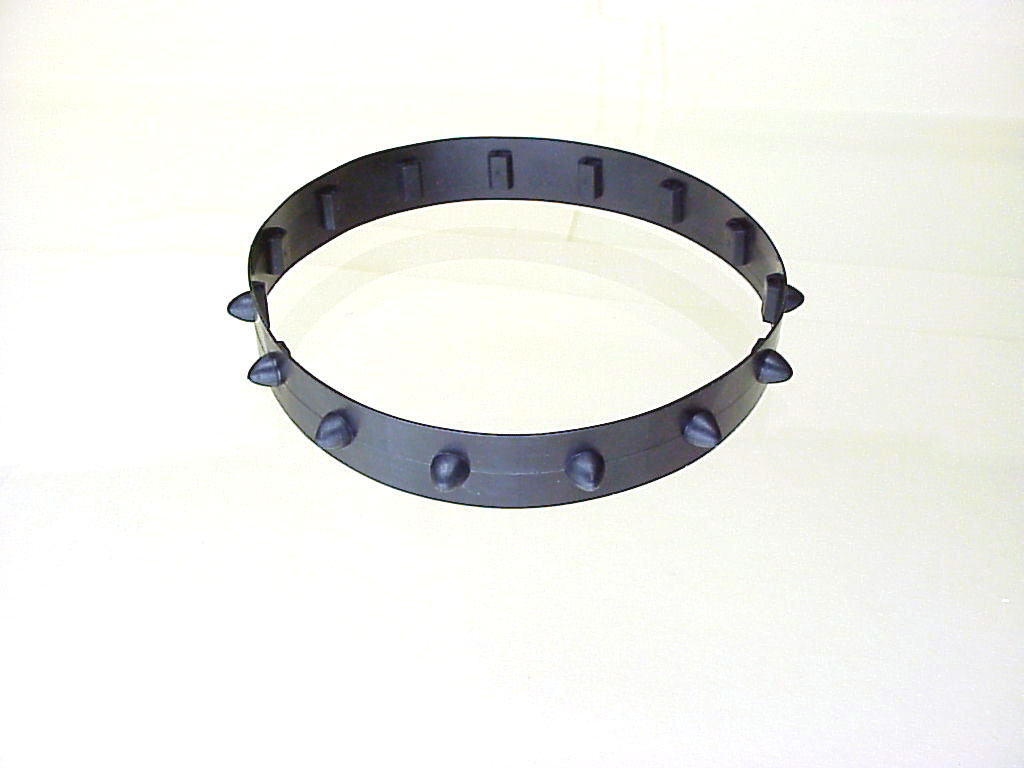

56XX ELASTOMER BELT |
 |
300448-35 |

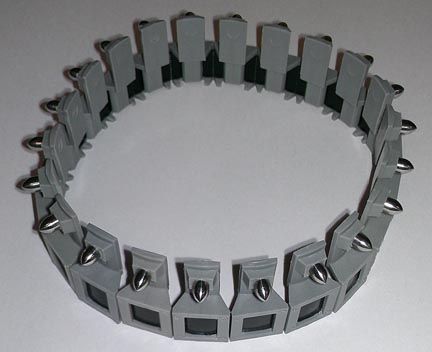

DZ40001 |
.142 GRAY STEEL PIN BELT ASSEMBLY FOR BULLDOZER TRACTORS 700 and 800 Series |
 |
||||

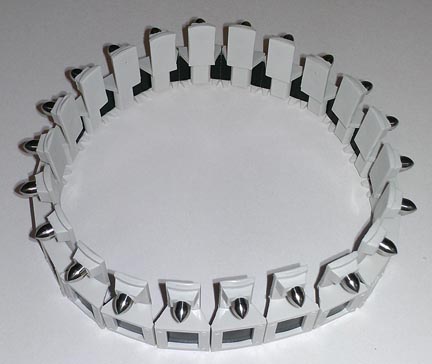

DZ40002 |
.151 WHITE STEEL PIN BELT ASSEMBLY FOR BULLDOZER TRACTORS 700 and 800 Series |
 |
||||
4800TB |

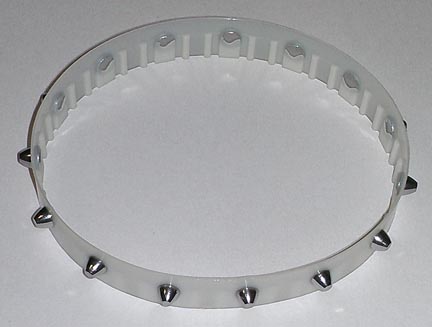

WHITE GENICOM BELT WITH STEEL PINS |
 |
||||

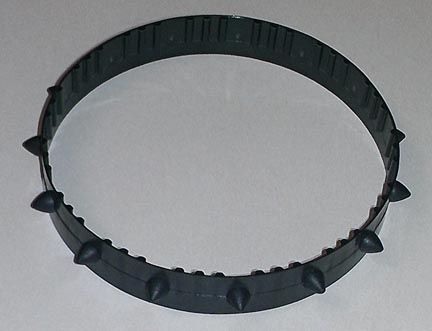

4800TB2 |
BLACK MOLDED BELT |
 |
||||

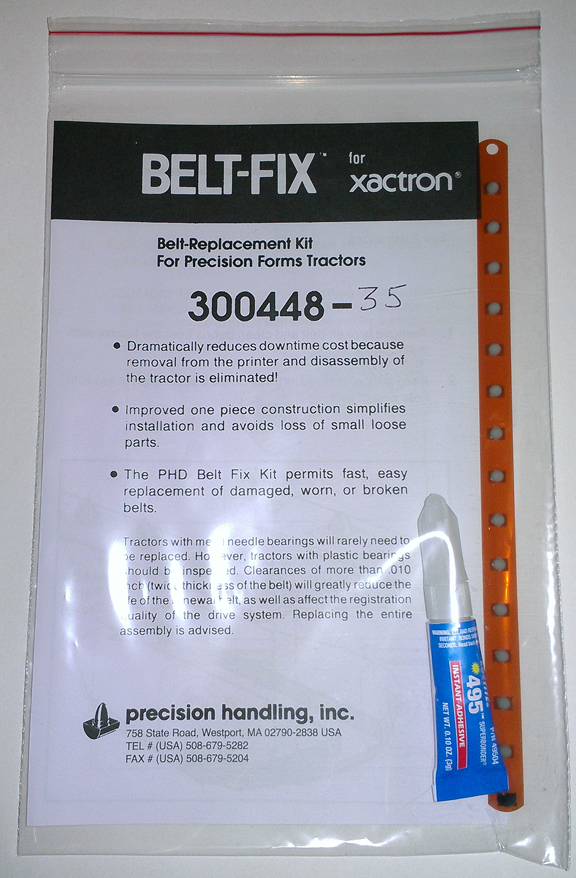

SAMPLE BELT KIT |
 |
